M4 Electric Scooter Installation

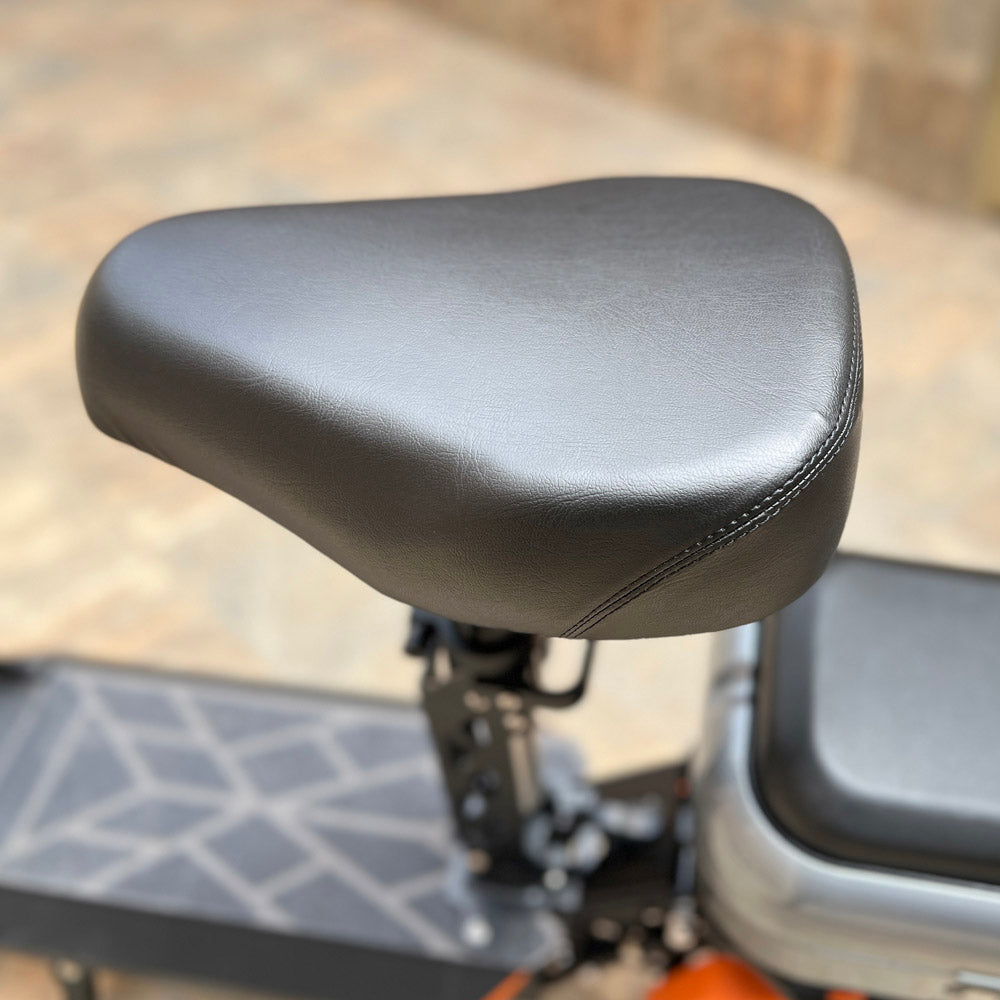

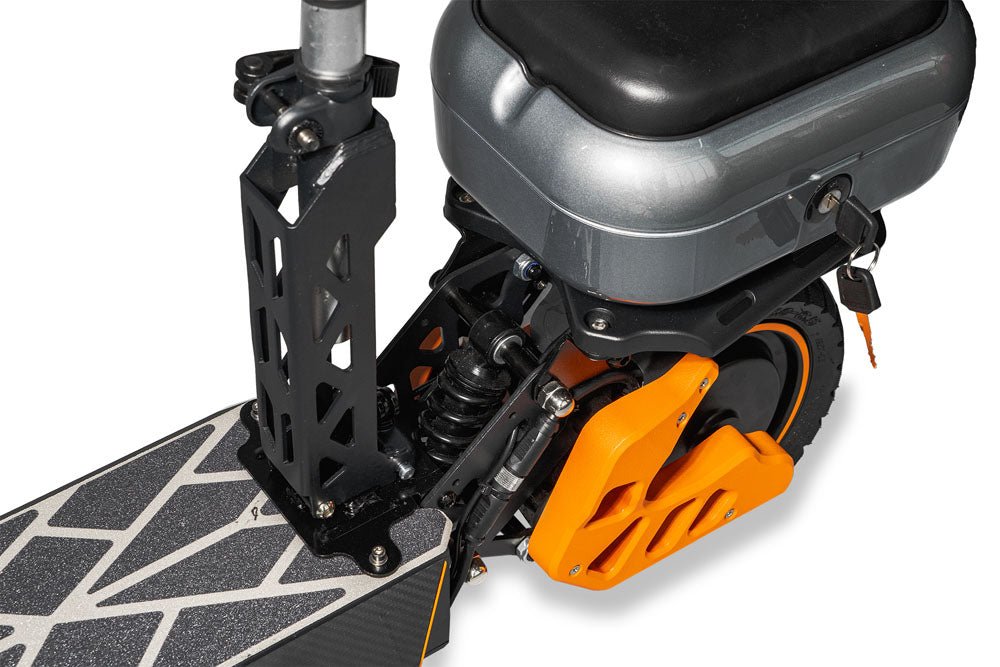

M4 Electric Scooter Seat Installation

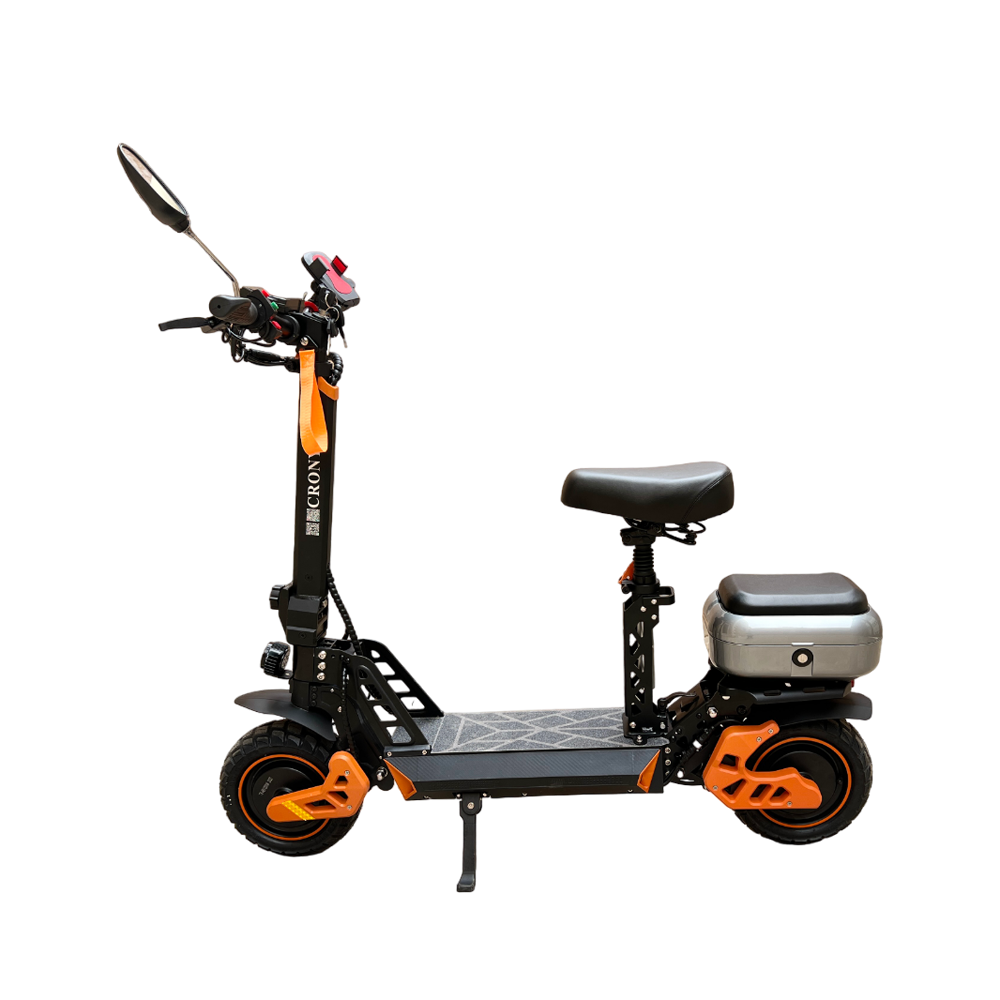

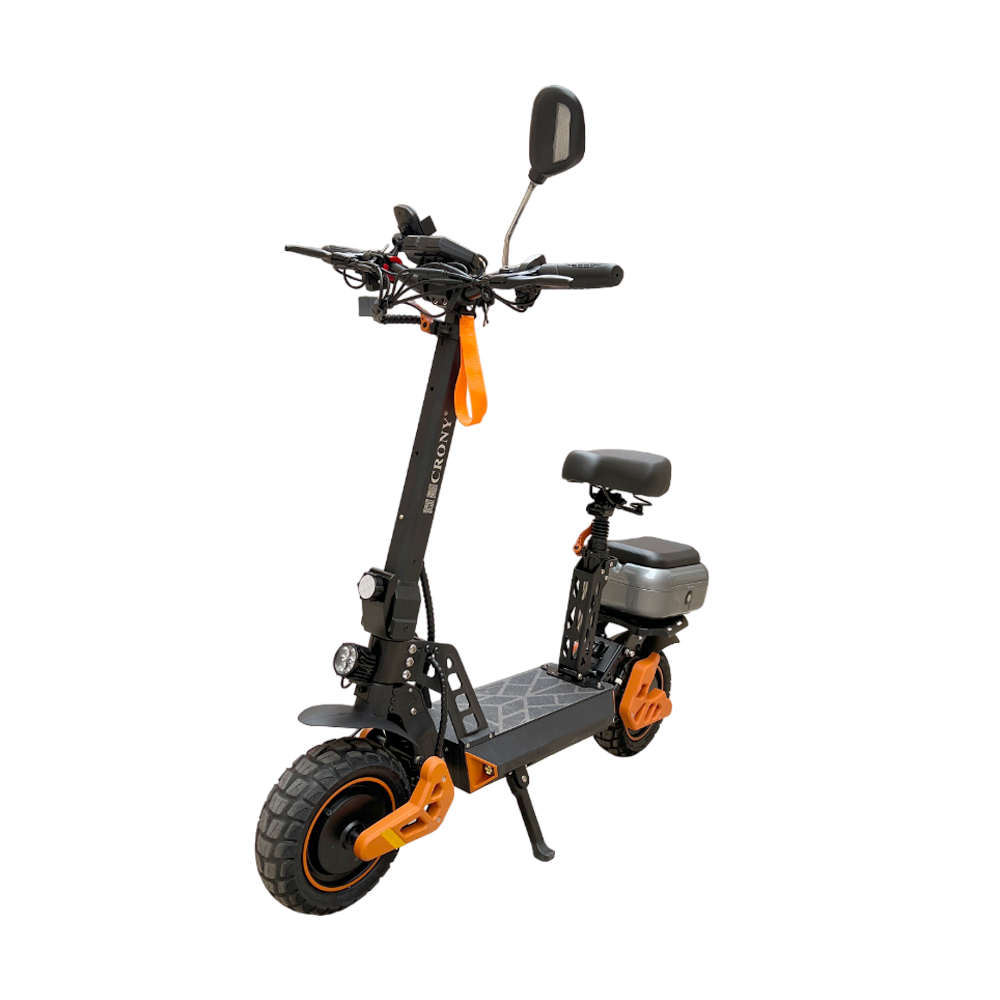

Model : M4 Max Dual Drive
Motor : 1200Wx2
Max Speed : 40KM/H
Battery: 48V/20AH
Range: 35-45KM
Charging Time : 6-8H

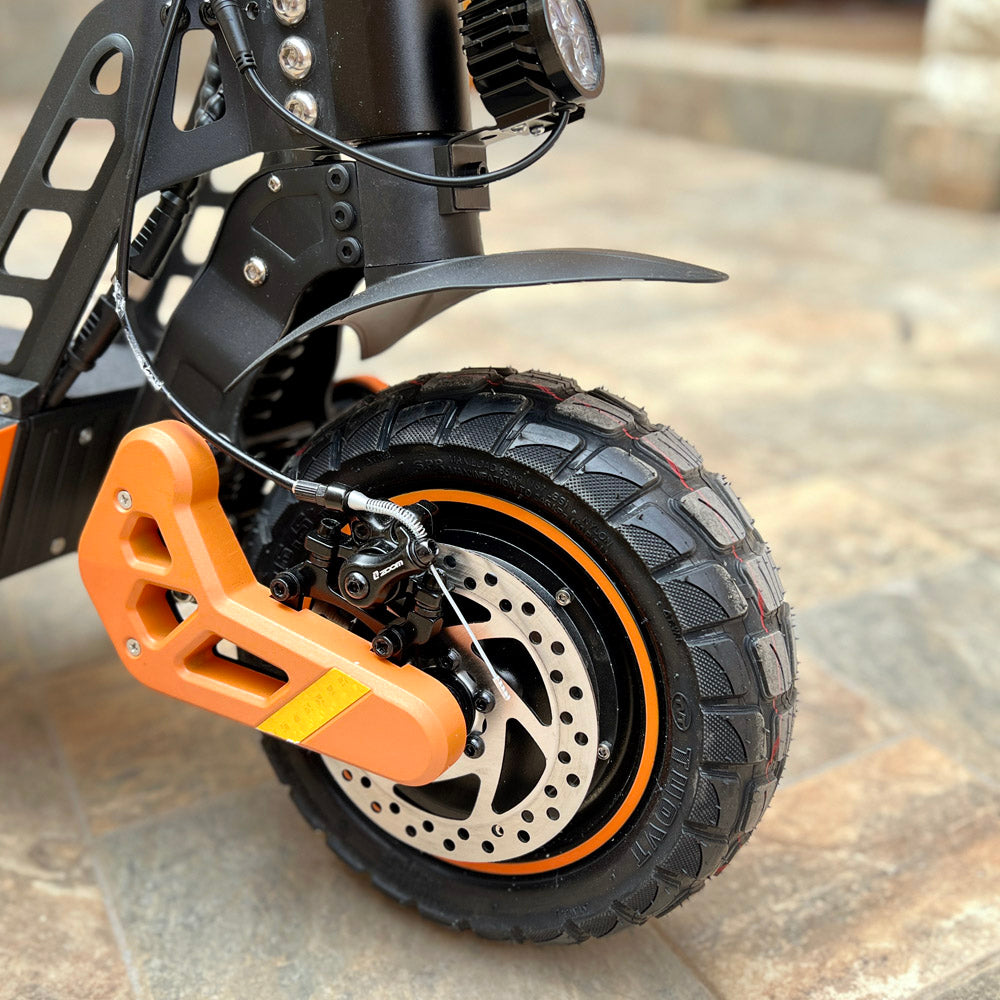

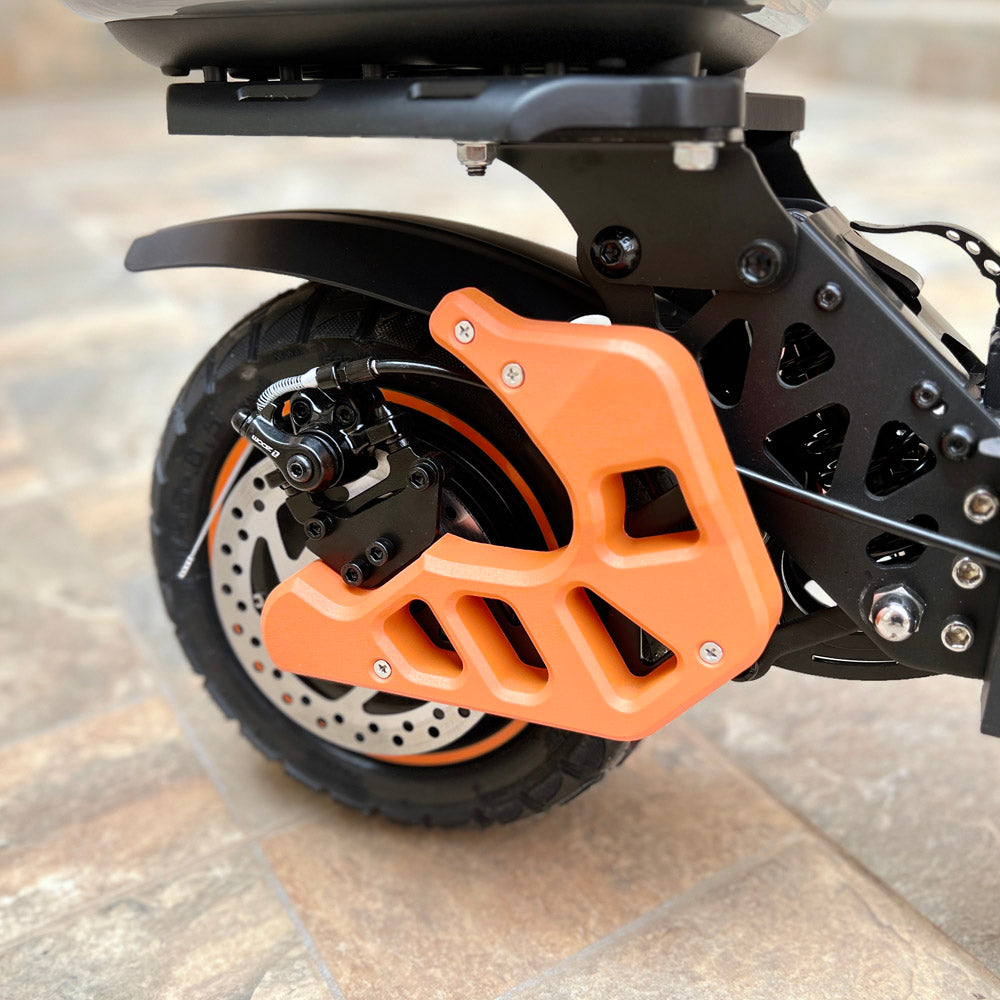

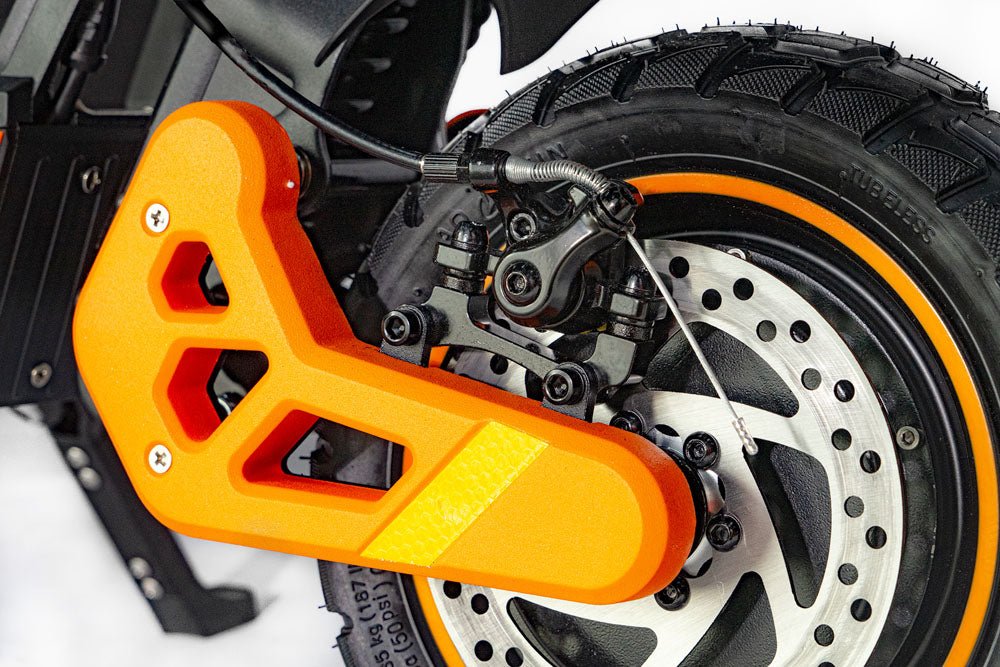

Brake(Front/Rear): Disc/Disc
Suspension: Front/ Rear
Max Loading Weight : 120KG
Frame Material : Aluminum Alloy
Carton Size: 119.5x27.5x55CM
G.W./N.W: 41.50KG/-KG
Warranty :  3 months，motor and battery
Additional Features: Rear-view Mirror

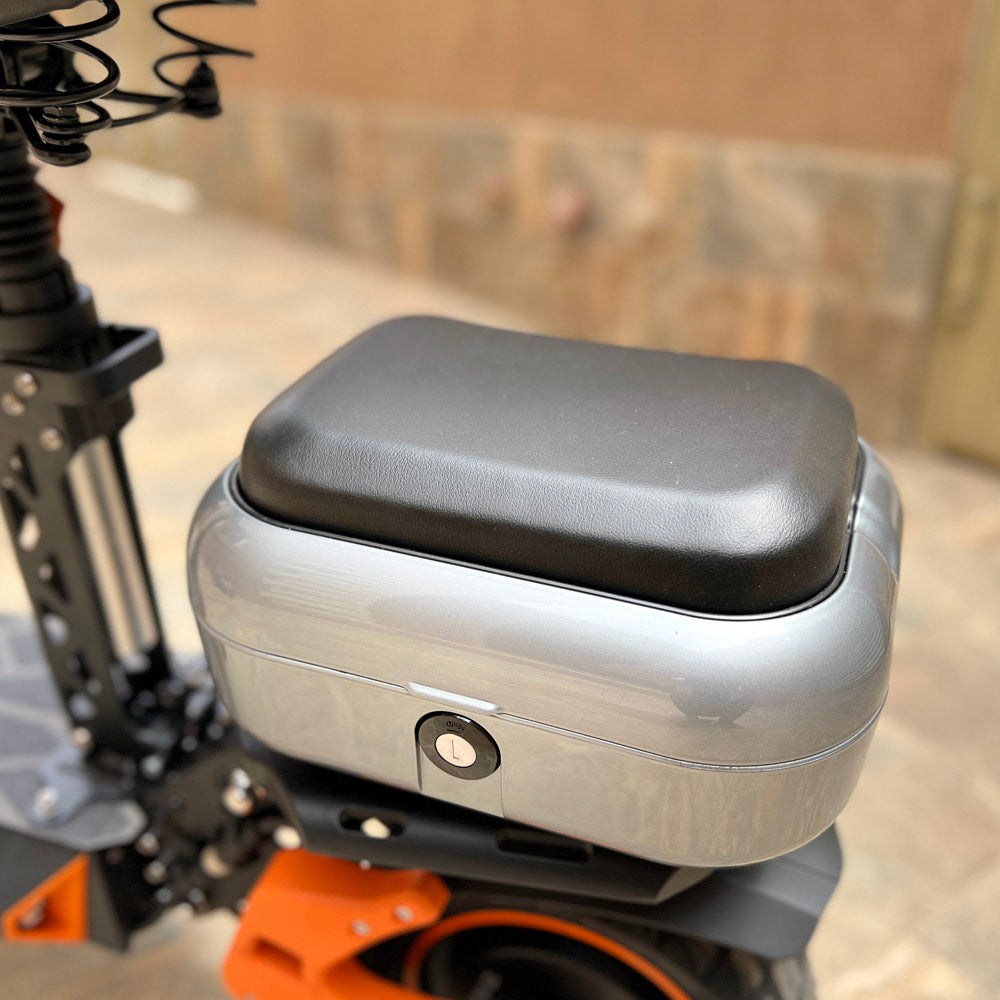

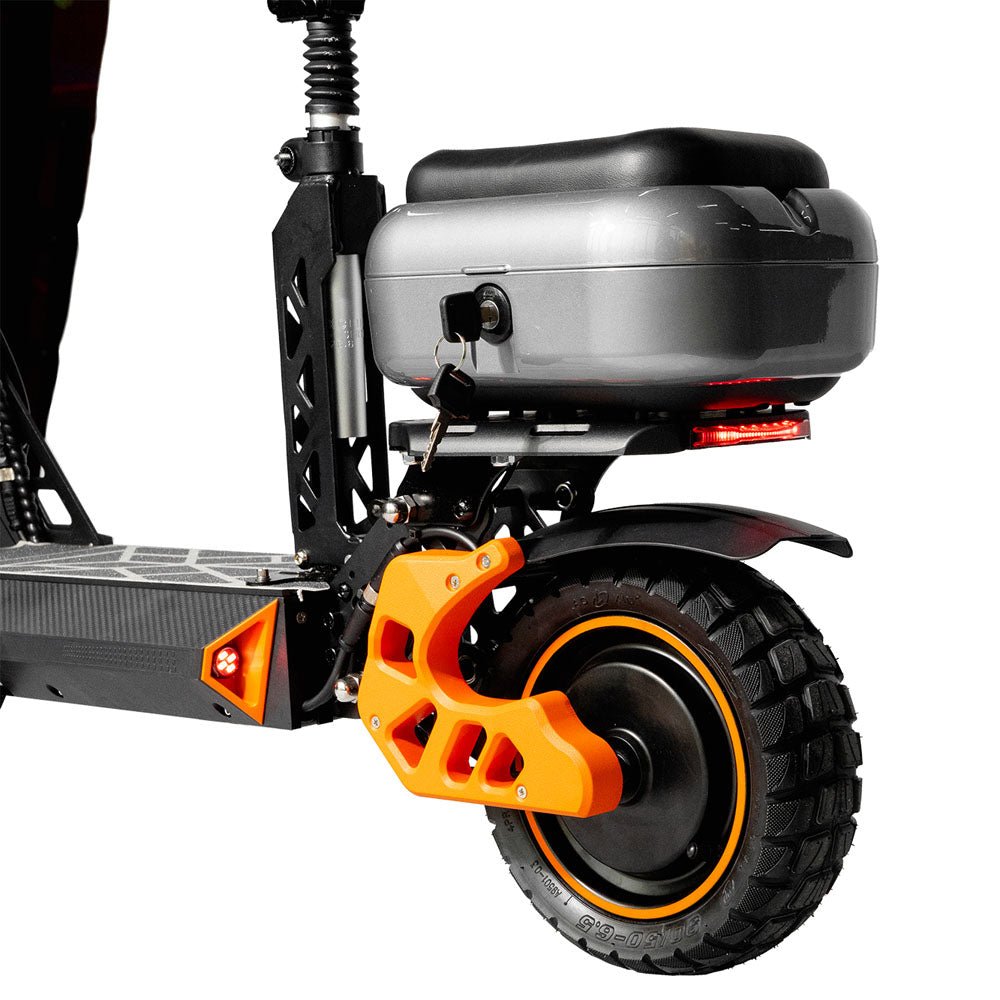

Rear luggage Box

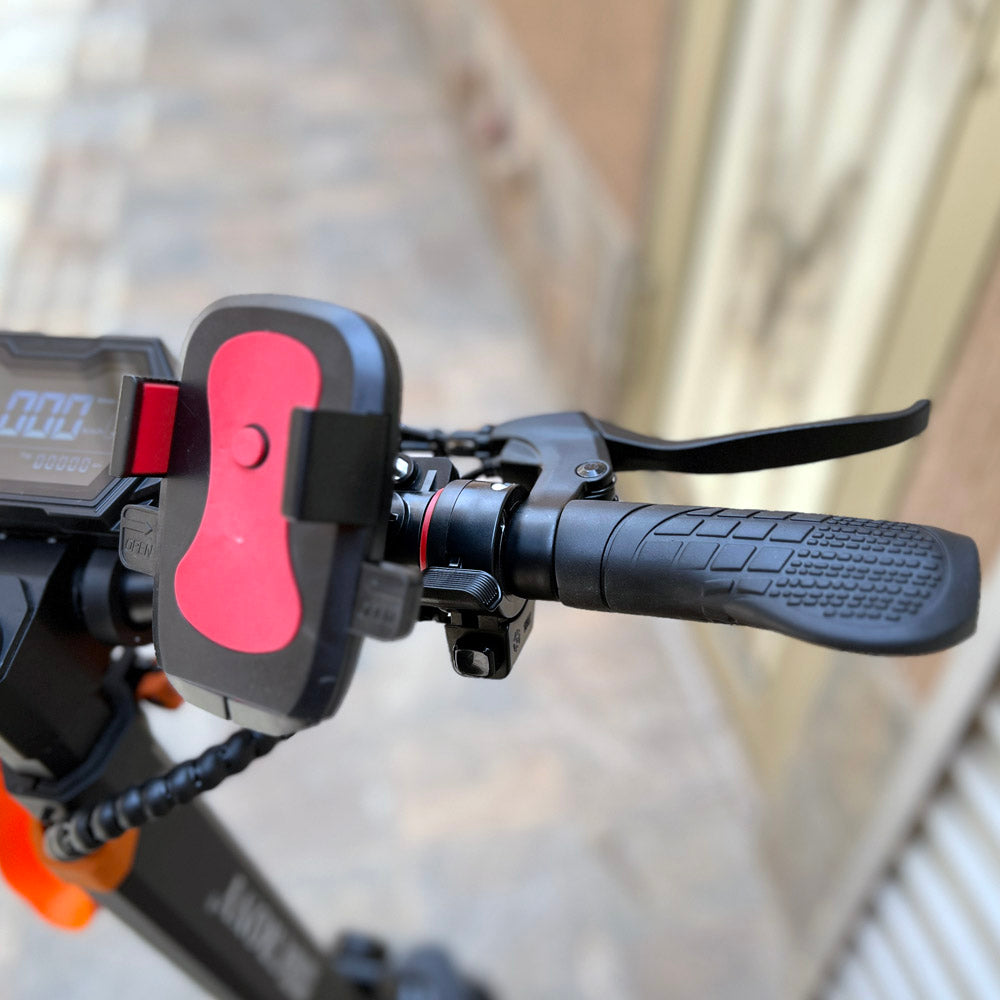

Mobile Phone Holder
IPX7 Waterproof

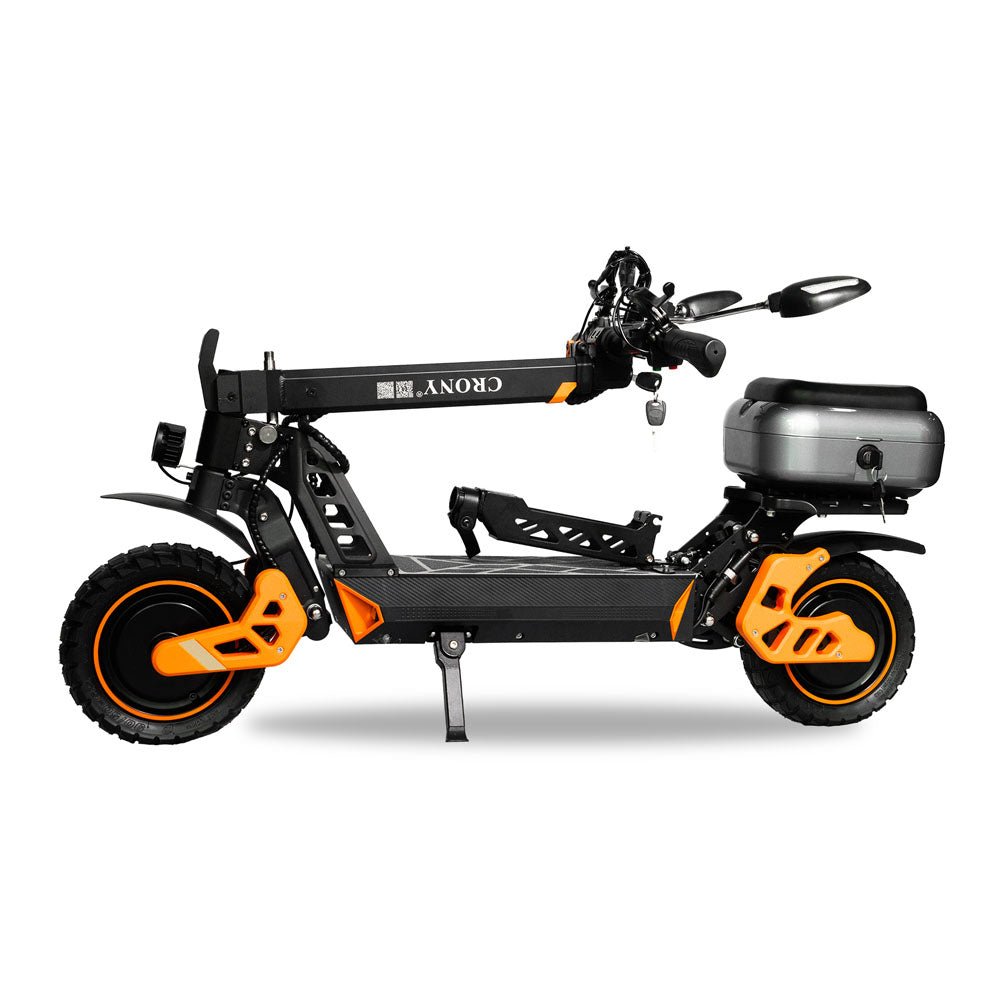

Easy folding
App Connectivity

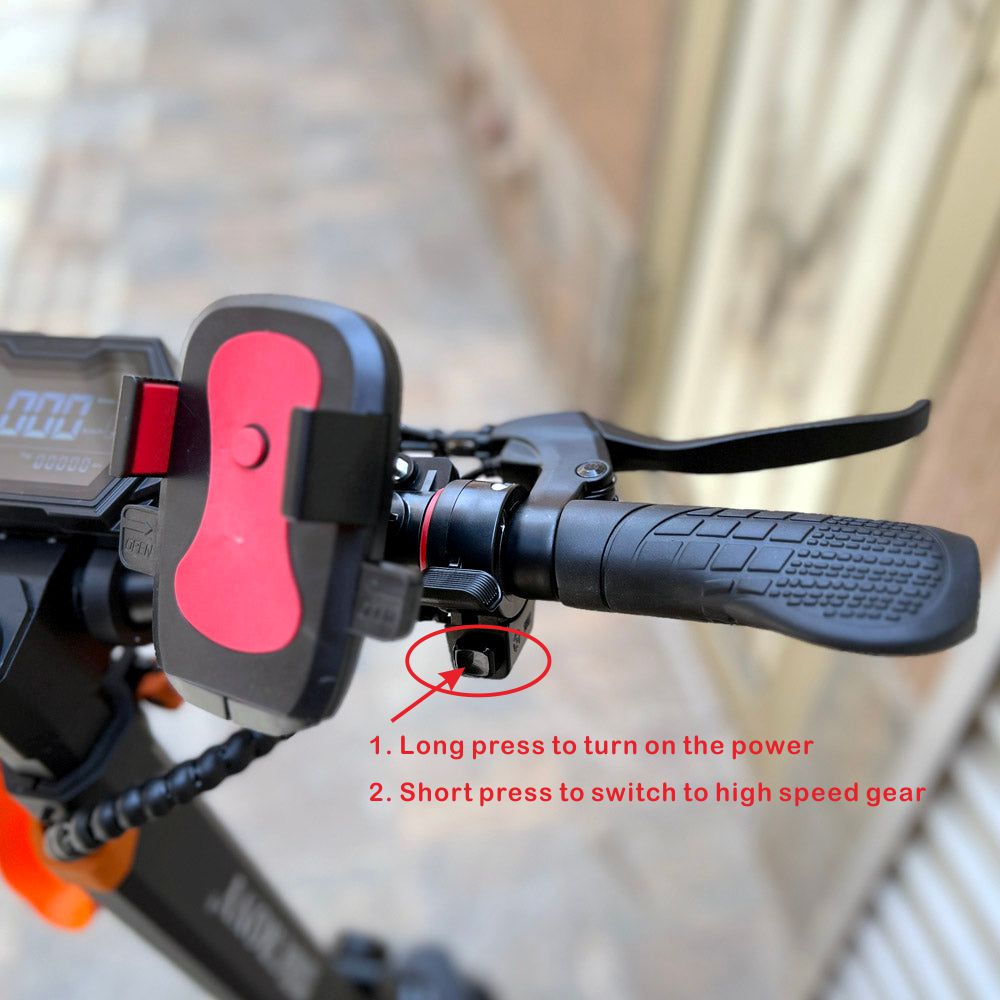

1. When the meter is turned on, short press the power button five times in a row to enter the parameter setting interface; short press to select other parameter settings; long press the power button to adjust the parameter value; long press the power button to exit after the adjustment is completed; if there is no operation for 8 seconds, it will automatically exit the parameter setting.
2. Parameter Description
P1: Speed and mileage unit setting (0 km, 1 mile)
P2: Voltage level setting (36v/48v/60v/72v)
P3: Wheel diameter setting
P4: Magnetic steel number setting
P5: Cruise setting (0 for no cruise, 1 for cruise)
P6: Zero start/non-zero start setting (0 for zero start, 1 for non-zero start)
P8: Sleep time setting (0 for no sleep, other numbers for sleep time 1-60 minutes)
PC: ODO reset setting (0 for no reset, 1 for reset, automatically exit reset after adjusting to 1, and then PC automatically returns to zero)
